Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Model nr.: | VS-063DA | Verbindingsformulier: | Flens |
|---|---|---|---|
| Structuur: | Centrumafdichting | Afdichtingsvorm: | Kracht verzegeld |
| Klepstam: | Normaal | Werkdruk: | Middendruk (2,5 MPa <pn <6,4Mpa) |
| Werktemperatuur: | Middelgrote Temperatuur (120°C| Afdichtmateriaal: |
Zacht verzegeld |
|
| Kleplichaam: | Bladmetaal | Maatspecificatie: | 2 inch-24 inch |
| Actuator luchtdruk: | 80-120 psi | Actuator Cycle Life: | 1 miljoen cycli |
| Actuatorontwerp: | rekpignon | Weerbestendige beoordeling: | IP66 & IP68 |
| Montagestandaard: | ISO5211 | ||
| Markeren: | Mid-Pressure Air Actuated Butterfly Valve,Medium Temperature Butterfly Valve,2 inch-24 inch Pneumatic Butterfly Valve |
||
Productomschrijving

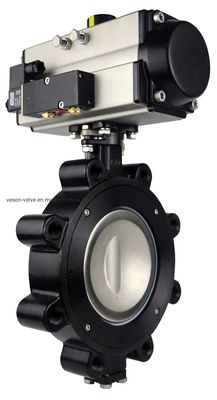

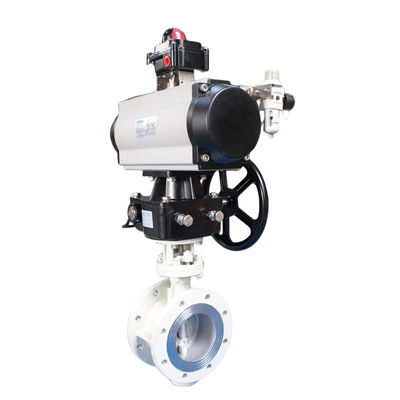

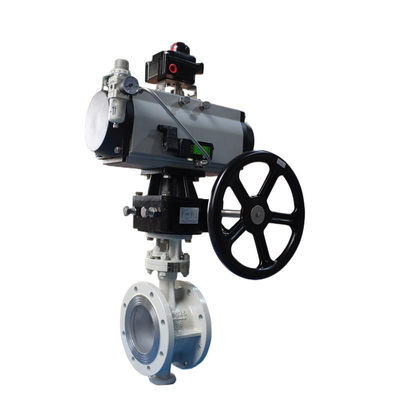

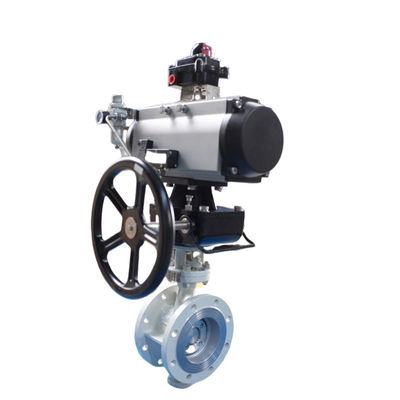

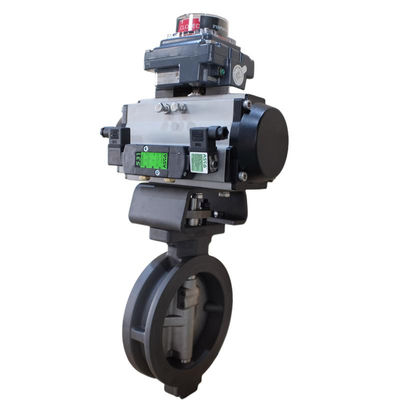

Air Actuated Butterfly Valve with Topworks Limit Switch Box Signal Box
Air actuated soft seated butterfly valve designed for on-off control of water and other compatible media. Features spring return actuators that use air pressure (80-120 PSI) to open and springs to close, ensuring fail-closed operation upon loss of air signal.
Butterfly Valve Standard Features
- Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
- Extended lifespan with unique wave line seat and special disc shape design
- Reduced torque from wave seal and disc design allows for smaller, more cost-effective actuators
- Increased flow capacity through unique profile disc and two-piece shaft design
- Standard ISO5211 mounting for direct actuator connection
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Rack pinion design for reliable operation
- Highly visible valve position indicator
- Type IP66 & IP68 weatherproof rating
- Anodized aluminum body with epoxy-polyester covers
- Compatible with dry or lubricated pilot air
- Namur & ISO mounting options
Product Images
