1" DN25 Stainless Steel T-Port Air Actuated Ball Valve with 1000 PSI Pressure Rating
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Klepmaat: | 1 "DN25 | Poorttype: | T-poort |
|---|---|---|---|
| Activeringstype: | Dubbel handelen | Werkdruk: | 1000 psi |
| Havenontwerp: | Volledige poort | Lichaamsmateriaal: | roestvrij staal 304/316 |
| Kogelmateriaal: | roestvrij staal 304/316 | Stengelmateriaal: | roestvrij staal 304/316 |
| Stoelen: | PTFE | stamverbinding: | Drievoudige PTFE/Viton |
| Actuator luchtdruk: | 80-120 psi | Actuator Cycle Life: | 1 miljoen cycli |
| Actuatorontwerp: | Rek en rondsel | Actuatorlichaam: | Geanodiseerd aluminium |
| Montagestandaard: | ISO5211 | ||
| Markeren: | 1" DN25 Air Actuated Ball Valve,1000 PSI Pneumatic Ball Valve,T-Port 3-Way Ball Valve |
||
Productomschrijving

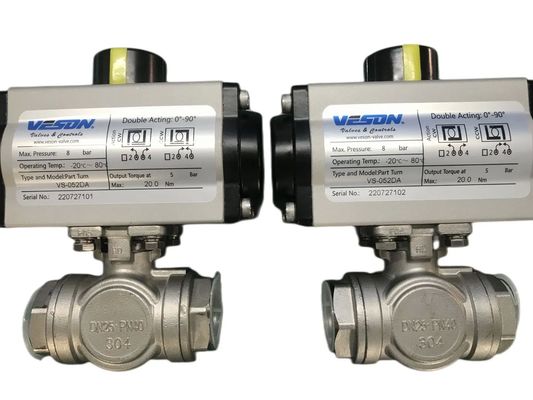

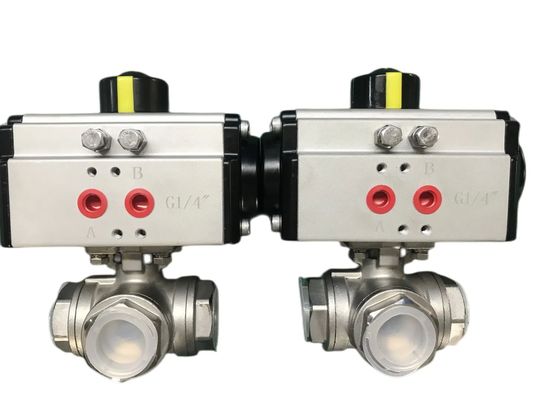

1" DN25 Air Actuated 3-Way SS T-Port Ball Valve, Double Acting
Veson Air Actuated 3-Way SS T-Port Ball Valve is a double acting stainless steel full port three way ball valve designed for use with water, air, oil, and other compatible media. This diverter valve features a T-port flow pattern without a flow shutoff position. The double acting actuators use air pressure (80-120PSI) to switch between position 1 and position 2. A high temperature valve mounting kit is available for extended temperature range or wall mounting applications.
Advantages over other valve types include higher flow rates, increased pressure and temperature tolerance, wider media compatibility, straight through flow path, reduced water hammer, and suitability for hazardous environments.
Ball Valve Standard Features
- 1000 PSI working pressure
- Full port design
- Stainless steel body (304 or 316), ball and stem
- Four ball seat design allows full pressure at any port
- PTFE ball seats for extended cycle life
- Triple PTFE/Viton stem seal design, live loaded and adjustable
- Valve direct mounts to actuator per ISO5211
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Rack & pinion design
- Highly visible valve position indicator
- Dry or lubricated pilot air
- Factory lubricated for normal life
- Anodized aluminum body with epoxy-polyester covers
- Namur & ISO mounting
