3-WAY Pneumatic Actuated Ball Valve with Pn40 Pressure Rating and 1000WOG for Industrial Applications
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Model nr.: | VS-240SR08-FO | Verbindingsformulier: | Flens |
|---|---|---|---|
| Rijmodus: | Pneumatisch | Nominale druk: | PN1.0-32.0MPA |
| Kanaal: | Direct door het type | Structuur: | Drijvende kogelventiel |
| Type: | Drijvende kogelventiel | Temperatuur: | Normale temperatuur |
| Lichaamsmateriaal: | CS SS | Druk: | PN40 |
| Specificatie: | 1 inch-12 inch | Type bal: | T of L -vorm |
| Klepmaat: | 1/4 "~ 4" (dn6 ~ dn100) | Stoelmateriaal: | PTFE, RTFE, Graphite en anderen |
| Beoordeling: | DIN: PN10 ~ PN40, ANSI: 150#~ 600#, 1000Wog | ||
| Markeren: | 3-WAY Pneumatic Ball Valve,Pn40 Pneumatic Actuated Ball Valve,1000WOG 3-WAY Ball Valve |
||
Productomschrijving

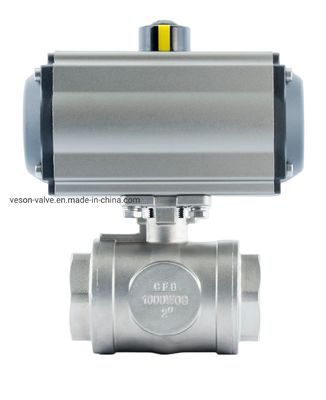

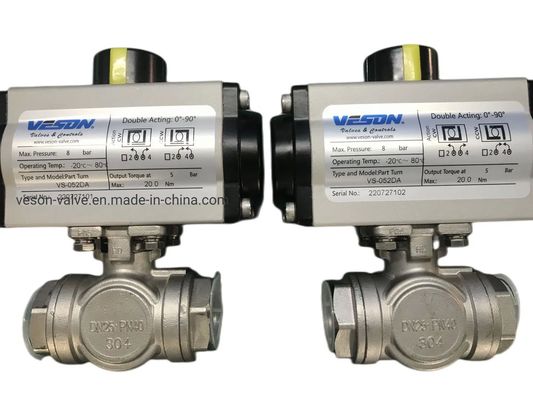

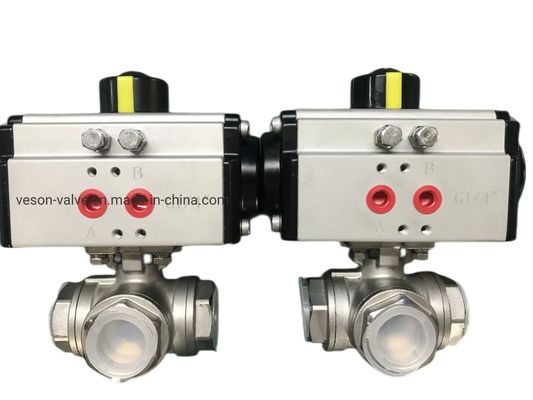

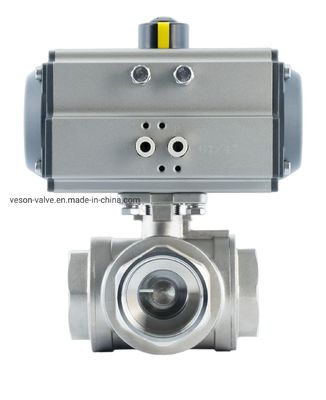

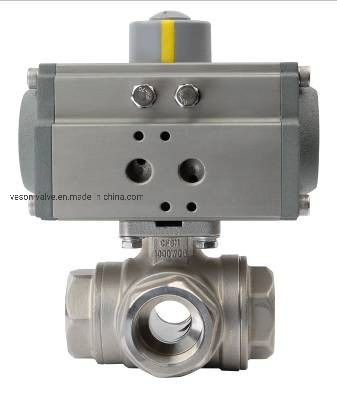

Pneumatic Actuated Ball Valve (3-WAY) Pn40 1000W.O.G
Product Description
VS series pneumatic actuated ball valve (3-WAY) featuring:
- Valve: Flanged End Ball Valve (3-way)
- Ball Type: T or L Shape
- Valve Size: 1/4"~4" (DN6~DN100)
- Body/Ball Material: WCB, CF8, CF8M, CF3M
- Seat Material: PTFE, RTFE, Graphite & Others
- Rating: DIN: PN10~PN40 / ANSI: 150#~600#, 1000WOG
- Connection: Female Thread, Flanged End
Product Images
Technical Specifications
| Feature | Specification |
|---|---|
| Valve Type | 3-WAY Flanged End Ball Valve |
| Ball Configuration | T or L Shape |
| Size Range | 1/4" to 4" (DN6 to DN100) |
| Body Materials | WCB, CF8, CF8M, CF3M |
| Seat Materials | PTFE, RTFE, Graphite & Others |
| Pressure Ratings | DIN: PN10~PN40 / ANSI: 150#~600#, 1000WOG |
| Connection Types | Female Thread, Flanged End |
