Pneumatic Actuated Ball Valve with 3-PC Design ANSI CLASS 150-900 and ASME B16.34 Standard
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Model nr.: | VS-240SR08-FO | Verbindingsformulier: | Flens |
|---|---|---|---|
| Rijmodus: | Pneumatisch | Nominale druk: | ANSI Klasse 150-900 |
| Kanaal: | Direct door het type | Structuur: | Drijvende kogelventiel |
| Type: | Drijvende kogelventiel | Temperatuur: | Lage temperatuur |
| ANSI Klasse: | 150#, 300#, 600#, 900# | Klepmaat: | 1/4 "~ 4" (dn6 ~ dn100) |
| Lichaamsmateriaal: | CF8/CF8M/CF3M | Stoelmateriaal: | PTFE, RTFE, Graphite en anderen |
| Beoordeling: | 1000wog, 2000wog | Verbinding: | Vrouwelijke draad, SW, kontlijm |
| Specificatie: | 1 inch-12 inch | ||
| Markeren: | 3-PC Design Pneumatic Ball Valve,ANSI CLASS 150-900 Actuated Ball Valve,ASME B16.34 3-PC Ball Valve |
||
Productomschrijving
Pneumatic Actuator Ball Valve 3-PC Screwed End Ball Valve 3PC Design Screwed End Socket End
Product Description

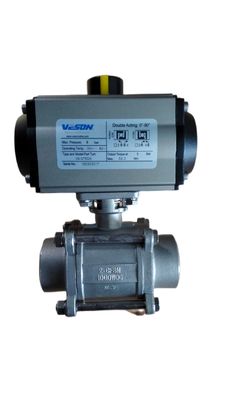

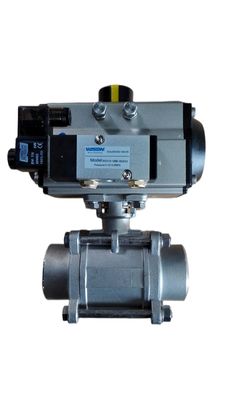

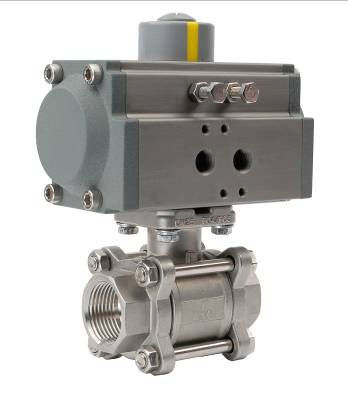

VS series pneumatic actuated ball valve (3-PC SCREWED END) featuring durable construction and versatile connection options for industrial applications.
Key Features
- Valve type: 3-PC Screwed End Ball Valve (two way)
- Available sizes: 1/4" to 4" (DN6 to DN100)
- Body/Ball material options: CF8/CF8M/CF3M
- Seat material options: PTFE, RTFE, Graphite & Others
- Pressure rating: 1000WOG, 2000WOG
- Connection types: Female Thread, SW (Socket Welded), Butt-weld
Specifications
| Feature | Specification |
|---|---|
| Valve Design | 3-Piece Screwed End |
| Size Range | 1/4" - 4" (DN6 - DN100) |
| Body Material | CF8/CF8M/CF3M |
| Seat Material | PTFE, RTFE, Graphite & Others |
| Pressure Rating | 1000WOG, 2000WOG |
| Connection Types | Female Thread, Socket Welded, Butt-weld |
Wilt u meer details over dit product weten
