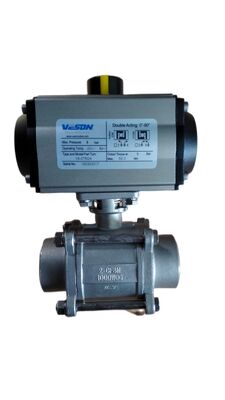

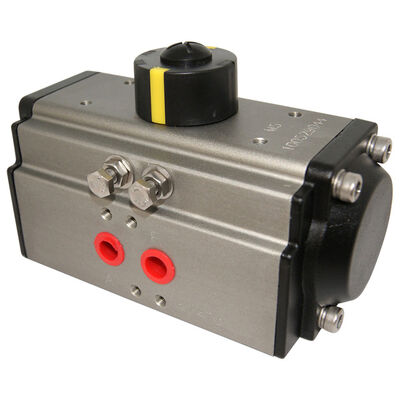

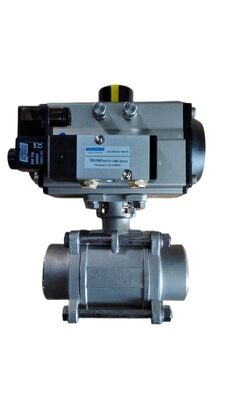

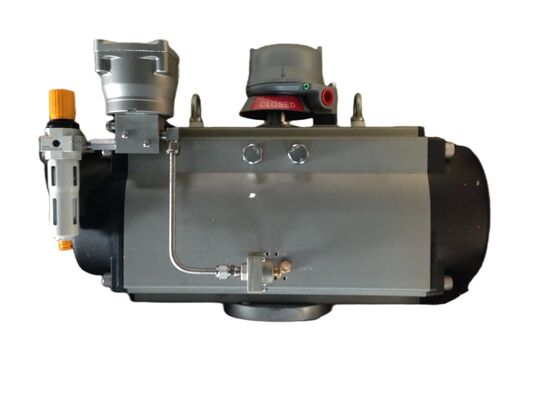

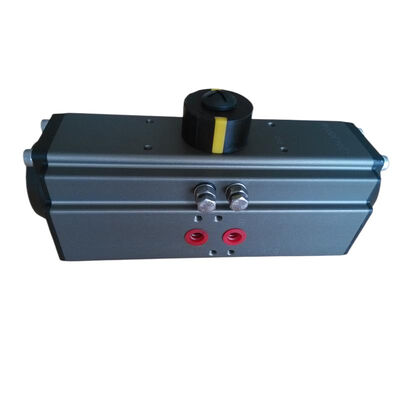

Rack Pinion Pneumatic Actuator with VDI/VDE3845 Standard Hard Anodized Treatment and Epoxy Coated for Industrial Usage
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Modelnr.: | VS-083 | Kanaal: | Direct door het type |
|---|---|---|---|
| Structuur: | Zuiger | Type: | Rek en rondsel |
| Standaard: | ISO5211 | Applicatie: | Industrieel gebruik, water industrieel gebruik |
| Transportpakket: | Multiplex kaspakket | Specificatie: | VS/32DA -400DA. of 52SR-400SR |
| Handelsmerk: | Veson of cusomer "s | Oorsprong: | China |
| Hs-code: | 84123900 | Productiecapaciteit: | 50000pc / y |
| Markeren: | VDI/VDE3845 pneumatic rack actuator,hard anodized rack pinion actuator,epoxy coated industrial pneumatic actuator |
||
Productomschrijving
VS-075 (rack& pinion) have the following features.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
