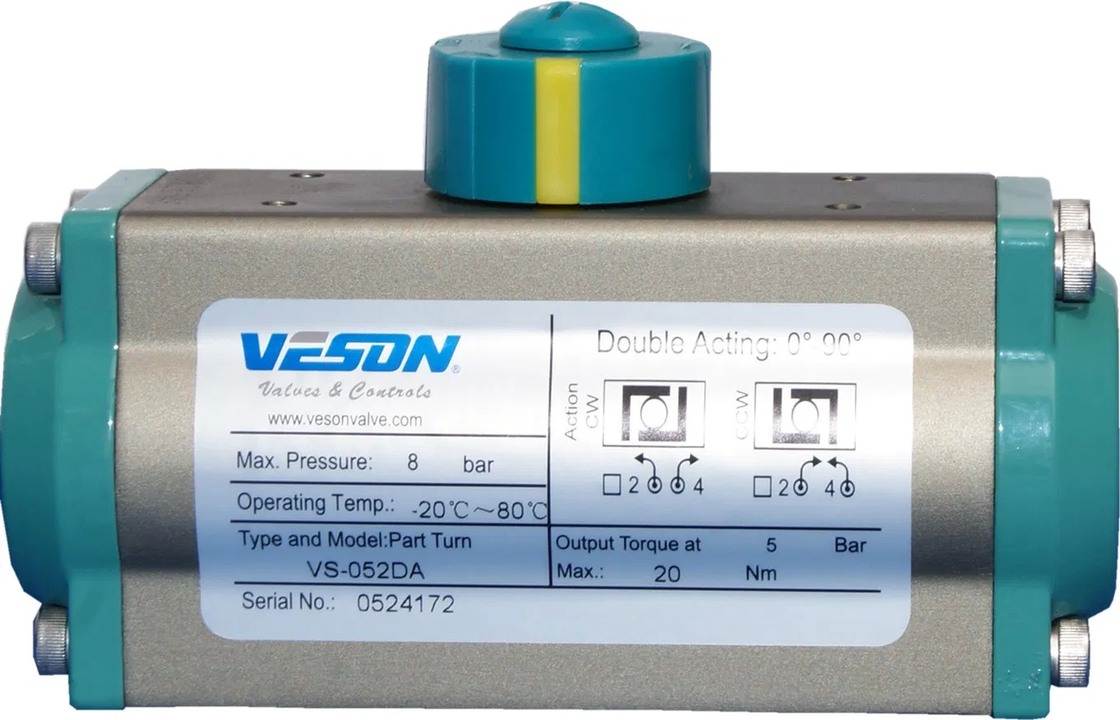

Double Acting Rotork Type Pneumatic Actuator with VS-052~VS-400 Model and Travel Adjustment ±5º
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Model nr.: | VS-052 ~ vs-400 | Stroom: | Pneumatisch |
|---|---|---|---|
| Drukrichting: | Dubbelwerkende cilinder | Pignonmateriaal: | Verhard Legeringsstaal |
| Rondsel coating: | Vernikkeld (meer dan 15um) | Materiaal behuizing van actuator: | Aluminium extrusie |
| Coating van behuizing van actuator: | Hard geanodiseerd (meer dan 30um) | Het materiaal van Beëindigenglb: | Die casting aluminium |
| Eindkapcoating: | Epoxycoating (meer dan 80um) | Zuiger materiaal: | Die casting aluminium |
| Zuigercoating: | Hard geanodiseerd (meer dan 30um) | Reisaanpassing: | ±5º in open/gesloten posities |
| Lentemateriaal: | Staal met grote trekspanning | Lente coating: | Met een laag bedekt epoxy |
| Lagers materiaal: | Zeer duurzame samenstelling | ||
| Markeren: | VS-052~VS-400 Model Pneumatic Actuator,Travel Adjustment ±5º Valve Actuator,Rotork Type Valve Actuator |
||
Productomschrijving
Double Acting Pneumatic Actuator Rotork Type Valve Actuator
This high-performance pneumatic actuator features precision engineering and durable materials for reliable valve operation in industrial applications.
Key Features
- Position Indicator: Standard Namur mounting for accessory installation
- Precision Pinion: Hardened alloy steel with nickel plating (15μm+) for reduced friction and maximum wear resistance
- Durable Actuator Body: Hard-anodized aluminum extrusion (30μm+) with optional epoxy or PTFE coating
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (80μm+) with optional PTFE treatment
- Balanced Piston: Hard-anodized die-cast aluminum (30μm+) with twin rack and pinion design for consistent torque output
- Adjustable Travel: ±5° adjustment in both open and closed positions via external bolts
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and easy maintenance
- Durable Bearings: High-trust compound materials for stability and long service life
Product Images
Technical Specifications
Full conformance with ISO 5211 & DIN 3337 standards. Custom dimensions and material options available including stainless steel and aluminum alloy components.
