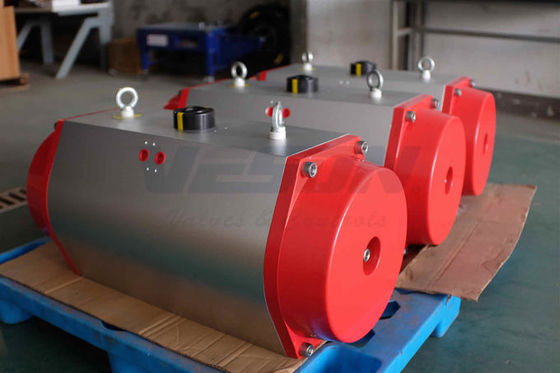

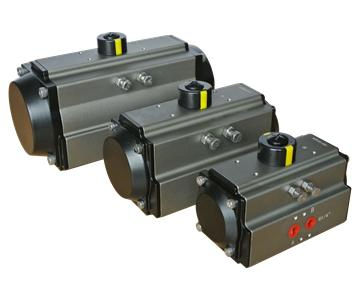

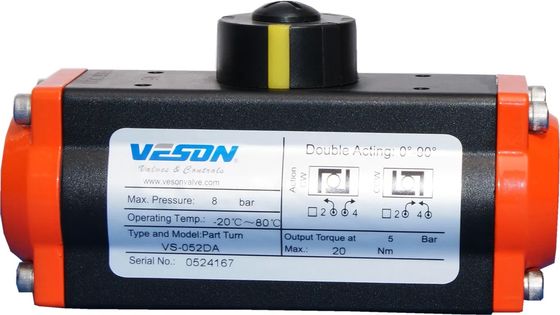

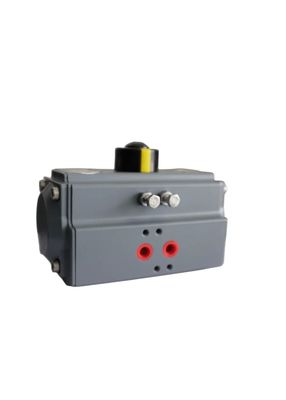

Epoxy Coated Pneumatic Actuator with ISO Pad 5211 and Travel Adjustment ±5º for Ball Valves with Limit Switch Boxes
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Model nr.: | VS-052 ~ vs-400 | Stroom: | Pneumatisch |
|---|---|---|---|
| Drukrichting: | Dubbelwerkende cilinder | Rij: | Pneumatische aandrijving |
| Pignonmateriaal: | Verhard Legeringsstaal | Rondsel coating: | Vernikkeld (meer dan 15um) |
| Actuatorlichaam: | Aluminium extrusie | Lichaamscoating: | Hard geanodiseerd (meer dan 30um) |
| Beëindigenglb: | Die casting aluminium | Eindkapcoating: | Epoxycoating (meer dan 80um) |
| Zuiger materiaal: | Die casting aluminium | Zuigercoating: | Hard geanodiseerd (meer dan 30um) |
| Reisaanpassing: | ±5º | Veren materiaal: | Staal met grote trekspanning |
| Veren coating: | Met een laag bedekt epoxy | ||
| Markeren: | ISO Pad 5211 Pneumatic Actuator,Travel Adjustment ±5º Valve Actuator,Limit Switch Boxes Pneumatic Air Actuator |
||
Productomschrijving
Epoxy Coated Pneumatic Actuator with ISO Pad 5211
Premium Features and Specifications
Position Indicator
- Namur mounting position indicator included on all VESON pneumatic actuators
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Custom dimensions available with stainless steel and aluminum alloy options
Durable Actuator Body
- Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection
- Minimized piston friction
- Optional Epoxy Coated and PTFE Coated treatments available
Corrosion-Resistant End Caps
- Epoxy coated (over 80μm) die casting aluminum construction
- Maximum resistance against corrosive elements
- Optional PTFE Coated treatment available
Precision Piston System
- Hard anodized (over 30μm) die casting aluminum piston
- Precisely balanced with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
- Standard adjustment of ±5° in both open and closed positions
- Easy access via external adjustment bolts
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design allows for safe and rapid disassembly
Durable Bearings & Guides
- Highly durable compound material construction
- Provides high thrust stability with minimal friction
- Extended operational lifespan
