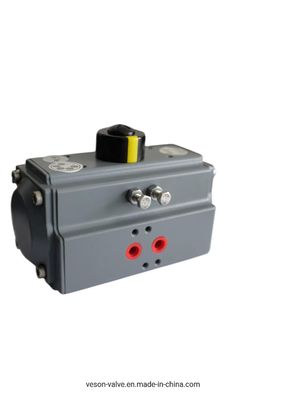

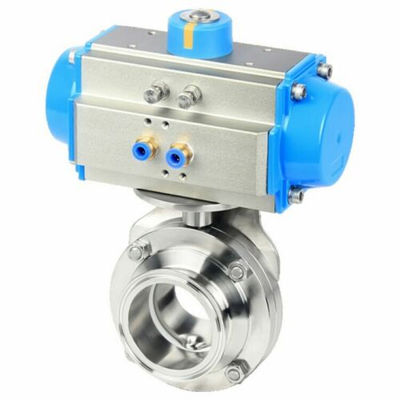

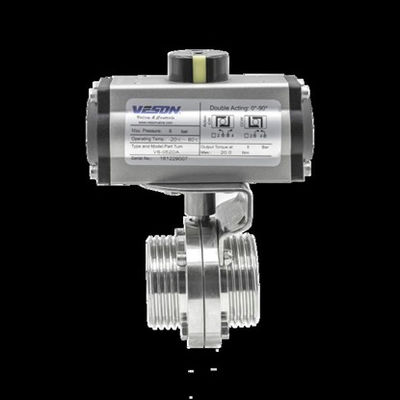

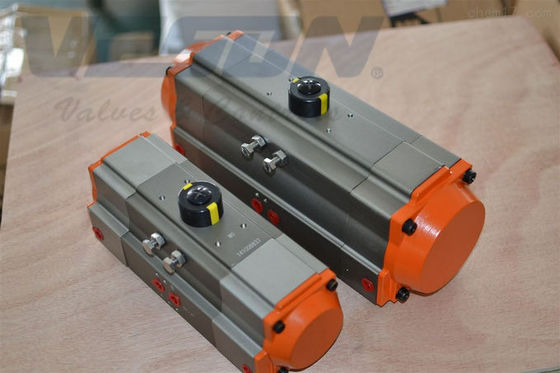

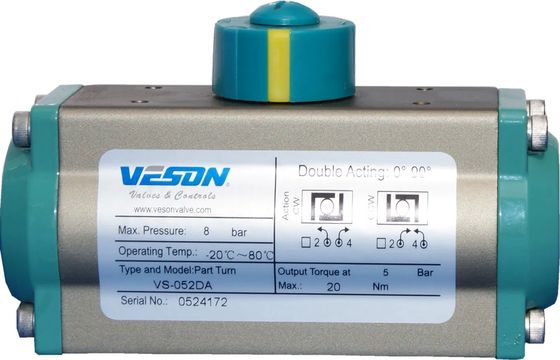

Pneumatic Actuator with Travel Adjustment ±5º Position Indicator and High Performance Springs for Valve Control
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Model nr.: | VS-052 ~ vs-400 | Werktype: | Roterend |
|---|---|---|---|
| Druk: | Gemiddelde druk | Werktemperatuur: | Normale temperatuur |
| Materiaal: | Aluminium | Pignonmateriaal: | Verhard Legeringsstaal |
| Rondsel coating: | Vernikkeld (meer dan 15um) | Coating van behuizing van actuator: | Hard geanodiseerd (meer dan 30um) |
| Eindkapcoating: | Epoxycoating (meer dan 80um) | Zuigercoating: | Hard geanodiseerd (meer dan 30um) |
| Reisaanpassing: | ±5º | Veren materiaal: | Staal met grote trekspanning |
| Veren coating: | Met een laag bedekt epoxy | Lagers materiaal: | Zeer duurzame samenstelling |
| Productiecapaciteit: | 50000pc / y | ||
| Markeren: | Travel Adjustment ±5º Pneumatic Actuator,Position Indicator Pneumatic Air Actuator,High Performance Springs Rotary Actuator |
||
Productomschrijving
Pneumatic Actuator Cylinder Pneumatic Valve Control
Product Features
- Indicator: Position indicator with Namur mounting for accessory attachment
- Pinion: Hardened alloy steel pinion, precision ground and nickel plated (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection with minimal piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
- End Cap: Epoxy coated (over 80μm) die casting aluminum for maximum corrosion resistance. PTFE Coated options available.
- Piston: Precisely balanced, hard anodized (over 30μm) die casting aluminum with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard ±5° adjustment in both open and closed positions via easily accessible external bolts.
- High Performance Springs: Epoxy coated high tensile steel for corrosion resistance and extended service life. Pre-loaded springs allow safe, rapid disassembly.
- Bearings & Guides: Highly durable compound material provides stable thrust with minimal friction and long service life.
