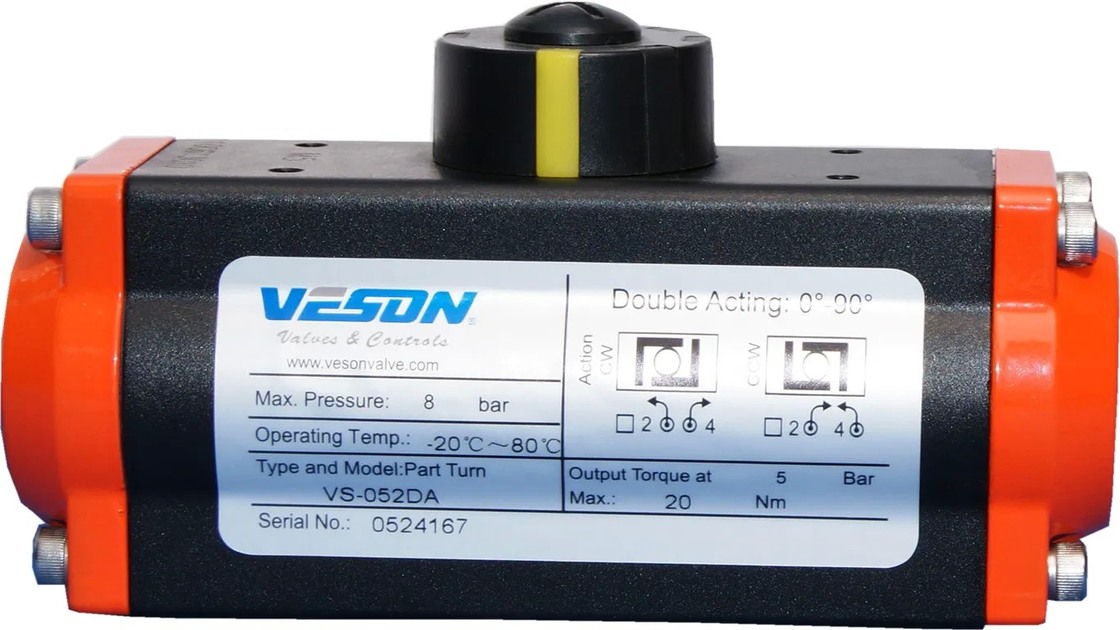

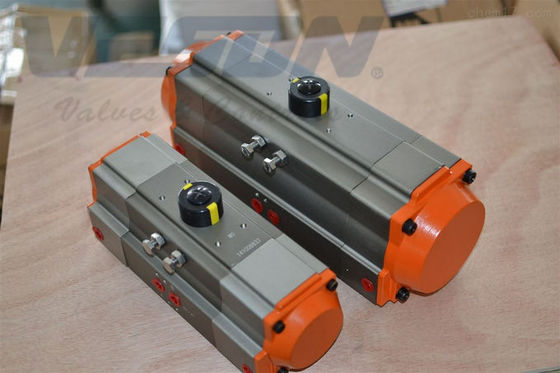

ISO5211 & DIN3337 Standard CE & SGS Certified VS-052~VS-400 Model Pneumatic Actuator Valve Actuator
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Model nr.: | VS-052 ~ vs-400 | Gewijzigde vorm: | Aan uit |
|---|---|---|---|
| Werktype: | Roterend | Druk: | Gemiddelde druk |
| Werktemperatuur: | Normale temperatuur | Type acteren: | Dubbel handelen |
| Materiaal: | Aluminium | Structuur: | Rek en rondsel |
| Pignonmateriaal: | Verhard Legeringsstaal | Rondsel coating: | Vernikkeld (meer dan 15um) |
| Coating van behuizing van actuator: | Hard geanodiseerd (meer dan 30um) | Eindkapcoating: | Epoxycoating (meer dan 80um) |
| Zuigercoating: | Hard geanodiseerd (meer dan 30um) | Reisaanpassing: | ±5º |
| Lente coating: | Met een laag bedekt epoxy | ||
| Markeren: | ISO5211 & DIN3337 Standard Pneumatic Actuator,CE & SGS Certified Valve Actuator,VS-052~VS-400 Model Pneumatic Actuator |
||
Productomschrijving
Valve Pneumatic Actuator Pneumatic Drive Actuated Solution
High-performance pneumatic actuator solution designed for industrial valve applications, featuring durable construction and precision engineering.
Key Features
- Position Indicator: Equipped with Namur mounting for accessory installation.
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Compliant with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel or aluminum alloy options.
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available.
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (over 80μm) with optional PTFE coating.
- Precision Piston: Hard-anodized die-cast aluminum (over 30μm) with high-quality guides and twin rack-and-pinion design for consistent torque output.
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts.
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and extended service life. Designed for safe, rapid disassembly.
- Premium Bearings & Guides: Durable compound material for high thrust stability with minimal friction and long operational life.
