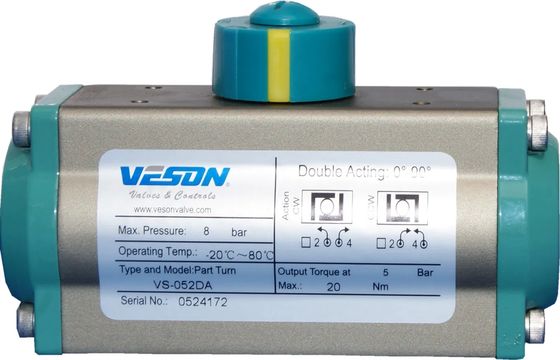

VESON Brand ISO5211 & DIN3337 Standard Pneumatic Actuator with Epoxy Coated End Cap and High Performance Springs
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Model nr.: | VS-052 ~ vs-400 | Stroom: | Pneumatisch |
|---|---|---|---|
| Drukrichting: | Dubbelwerkende cilinder | Pignonmateriaal: | Verhard Legeringsstaal |
| Rondselbeplating: | Vernikkeld (meer dan 15um) | Materiaal behuizing van actuator: | Aluminium extrusie |
| Actuator lichaamsbehandeling: | Hard geanodiseerd (meer dan 30um) | Het materiaal van Beëindigenglb: | Die casting aluminium |
| Eindkapbehandeling: | Epoxycoating (meer dan 80um) | Zuiger materiaal: | Die casting aluminium |
| Zuigerbehandeling: | Hard geanodiseerd (meer dan 30um) | Reisaanpassing: | ±5º |
| Lentemateriaal: | Staal met grote trekspanning | Lente coating: | Met een laag bedekt epoxy |
| Lagers materiaal: | Zeer duurzame samenstelling | ||
| Markeren: | ISO5211 & DIN3337 Standard Pneumatic Actuator,Epoxy Coated End Cap Air Actuator,High Performance Springs Pneumatic Air Actuator |
||
Productomschrijving
Air Torque Type Pneumatic Actuator
Position Indicator
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Pinion
- Hardened alloy steel pinion precision ground and nickel plated (over 15μm)
- Reduces friction and provides maximum wear resistance
- Full conformance with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Actuator Body
- Hard anodized aluminum extrusion (over 30μm)
- Protects against wear and corrosion while minimizing piston friction
- Optional treatments: Epoxy Coated and PTFE Coated
End Cap
- Epoxy coated die casting aluminum (over 80μm)
- Provides maximum resistance against potentially corrosive elements
- Optional treatments: PTFE Coated
Piston
- Precisely balanced and hard anodized die casting aluminum (over 30μm)
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Travel Adjustment
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel springs with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded springs can be safely and rapidly disassembled
Bearings & Guides
Highly durable compound material provides high thrust stability with minimum friction and long service life.
