Nickel Plated Pneumatic Actuator with ISO5211/DIN3337 and VDI/VDE3845 Standards for Low Pressure Applications
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Model nr.: | VS-052 ~ vs-400 | Werktype: | Roterend |
|---|---|---|---|
| Druk: | Lage druk | Werktemperatuur: | hoge temperatuur |
| Type acteren: | Dubbel handelen | Materiaal: | Aluminium |
| Structuur: | Rek en rondsel | Uitgangskoppel: | 9NM aan 4620Nm |
| Luchtvoorziening: | 6 bar | Bodem boren: | ISO5211/DIN3337 |
| Interface -standaard: | VDI/VDE3845, Namen | slagaanpassing: | +/- 5° |
| Been: | met een breedte van niet meer dan 15 mm | Actuatormodellen: | 15 |
| Productiecapaciteit: | 50000pc / y | ||
| Markeren: | ISO5211/DIN3337 Pneumatic Actuator,VDI/VDE3845 Pneumatic Actuator,Low Pressure Pneumatic Actuator |
||
Productomschrijving

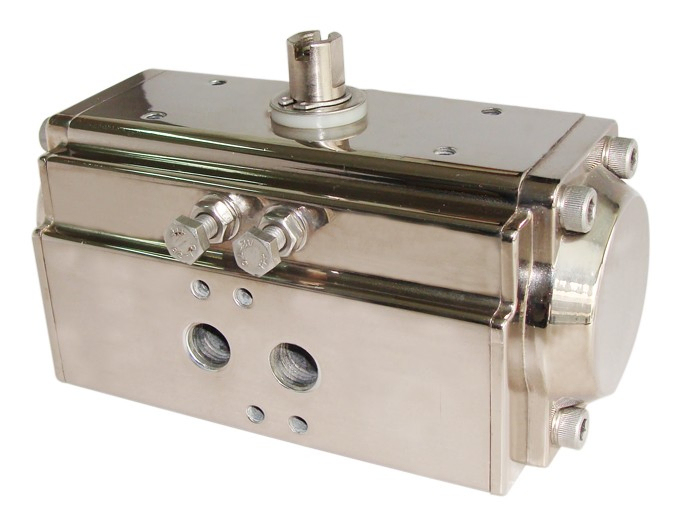

Pneumatic Actuator Nickle Plated
Product Overview
The VS series rack & pinion type pneumatic actuators deliver reliable performance with these key features:
- 15 actuator models available with output torque ranging from 9NM to 4620Nm at 6 bar air supply
- Bottom drilling complies with ISO5211/DIN3337 standards for valve compatibility
- Interface for solenoid valve, shaft top end and top drilling for accessories follow VDI/VDE3845 and Namur standards
- ±5° stroke adjustment capability
Nickel plating provides superior protection against corrosive and abrasive environments, making this actuator ideal for sanitary industry applications.

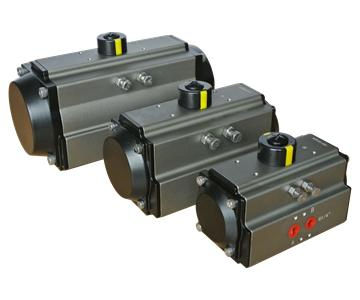

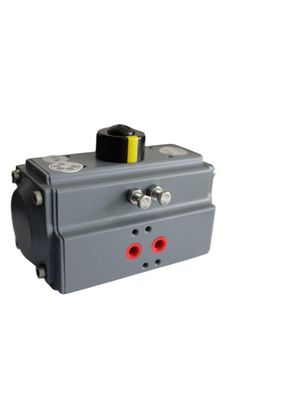

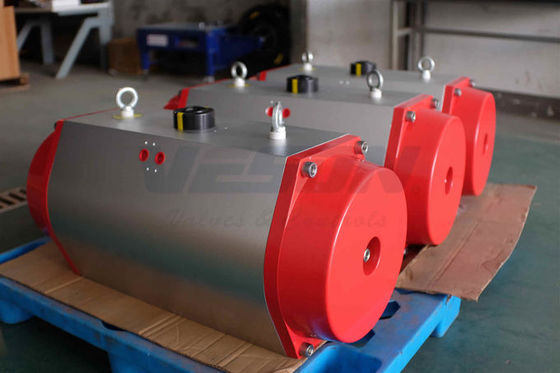

Product Images
